Plot FB4 simulation results

Main plotting method for fb4_result objects. Automatically detects available data and provides appropriate visualizations.

Usage

# S3 method for class 'fb4_result'
plot(x, type = "dashboard", save_plot = NULL, ...)

Arguments

x

Object of class fb4_result

type

Type of plot: "dashboard", "growth", "consumption", "temperature", "energy", "uncertainty", "sensitivity"

save_plot

Optional path to save plot (.png or .pdf)

...

Additional arguments passed to specific plot functions

Value

Invisibly returns the input object x, called for its plotting side-effect.

Examples

# \donttest{
data(fish4_parameters)
sp   <- fish4_parameters[["Oncorhynchus tshawytscha"]]$life_stages$adult
info <- fish4_parameters[["Oncorhynchus tshawytscha"]]$species_info
bio  <- Bioenergetic(
  species_params     = sp,
  species_info       = info,
  environmental_data = list(
    temperature = data.frame(Day = 1:30, Temperature = rep(12, 30))
  ),
  diet_data = list(
    proportions = data.frame(Day = 1:30, Prey1 = 1.0),
    energies    = data.frame(Day = 1:30, Prey1 = 5000),
    prey_names  = "Prey1"
  ),
  simulation_settings = list(initial_weight = 100, duration = 30)
)
#> Bioenergetic object created for: Oncorhynchus tshawytscha
bio$species_params$predator$ED_ini <- 5000
bio$species_params$predator$ED_end <- 5500
result <- run_fb4(bio, strategy = "direct", p_value = 0.5, verbose = FALSE)
#> Validation warnings:
#> Missing optional parameters (will be calculated): CG1, CG2
#> Object is ready for simulation
#> Validation warnings:
#> Missing optional parameters (will be calculated): CG1, CG2
#> Object is ready for simulation
#> Processing species parameters...
#> Processing temporal data...
#> No indigestible fraction data provided, using default 0% for all prey (FB4 default)
#> Processing simulation settings...
#> Simulation data preparation complete. Ready for simulation.

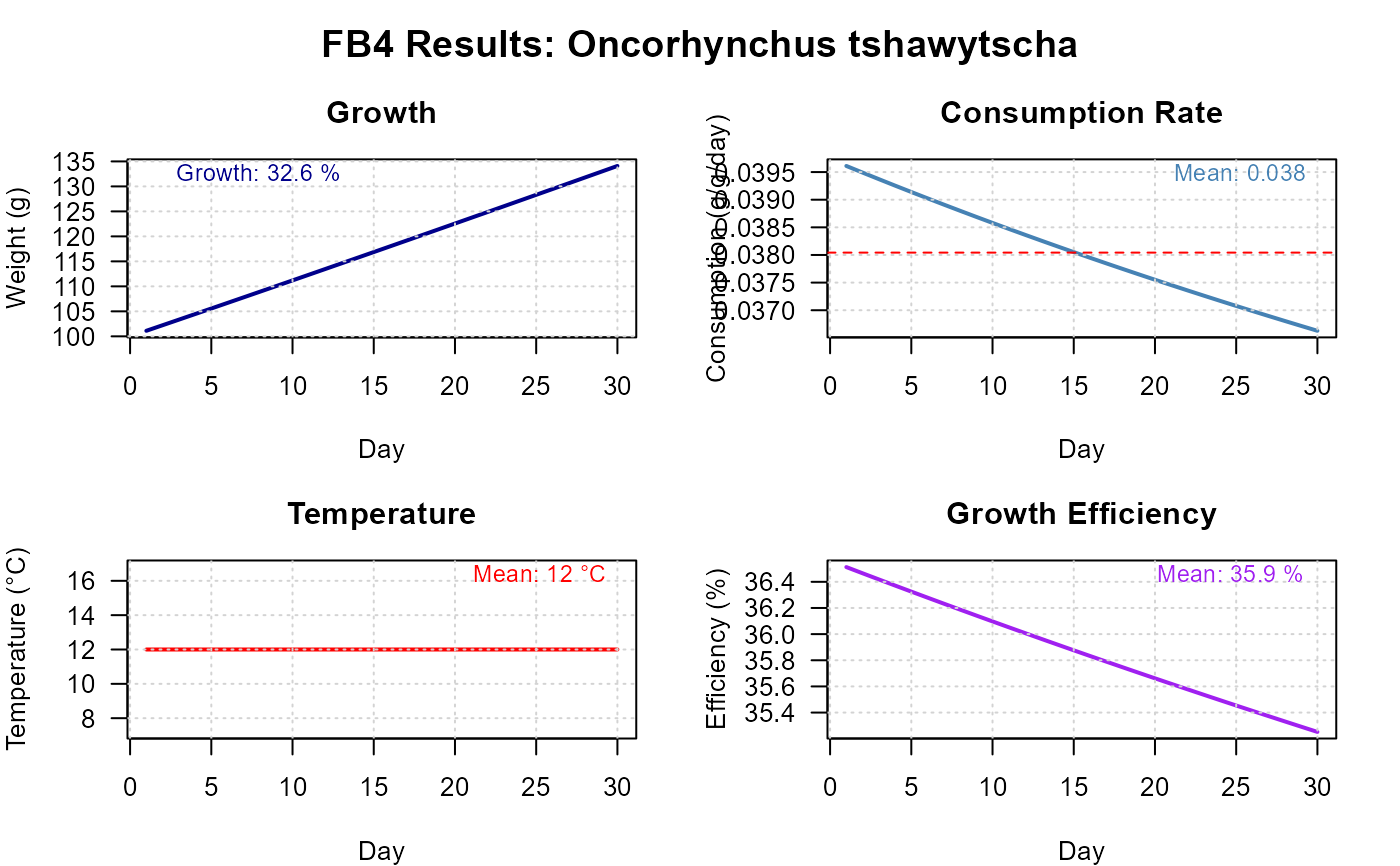

plot(result)

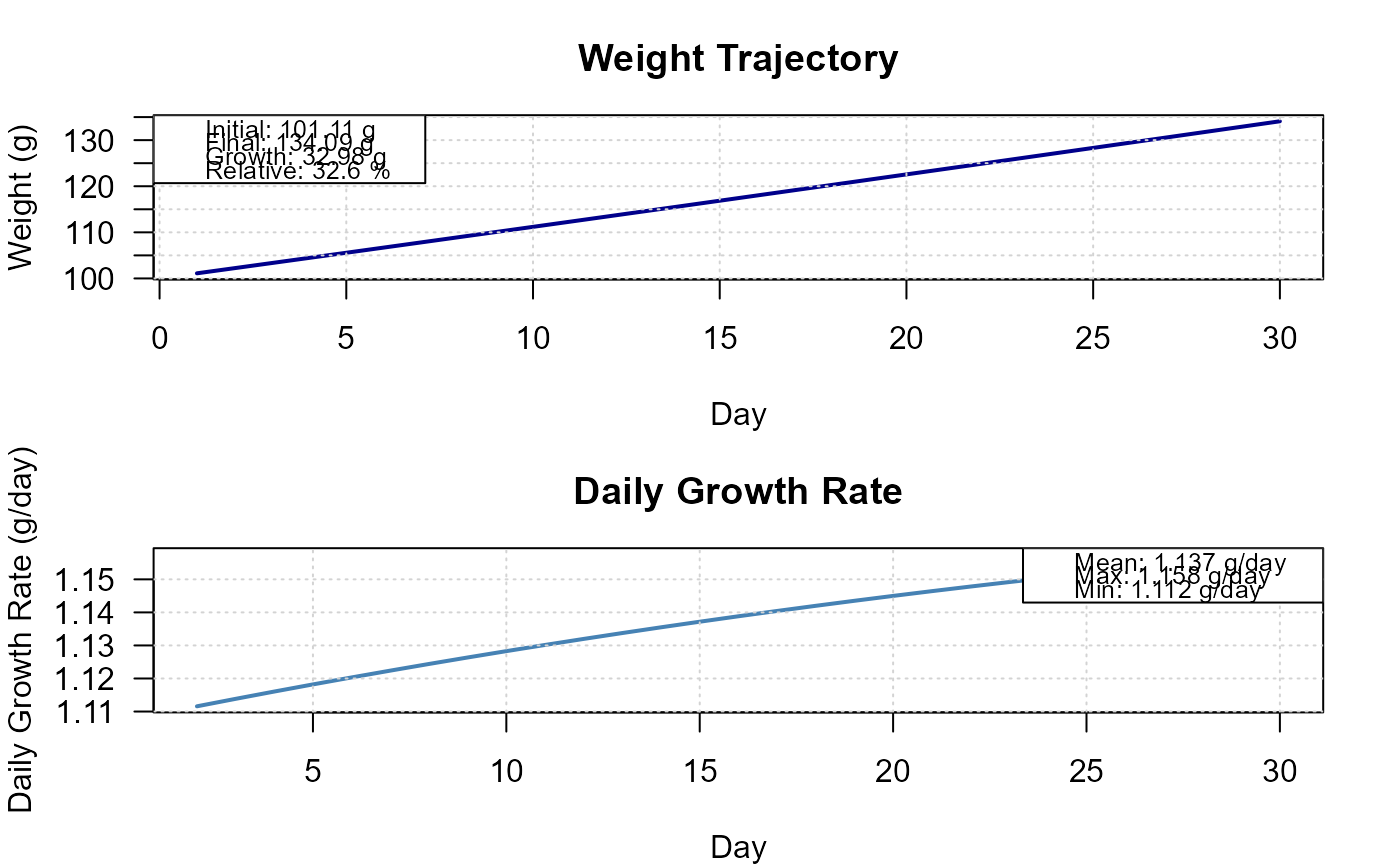

plot(result, type = "growth")

# }
